Our products · Corn headers
Don't let your corn header be the limiting factor in your harvest…
Technical details

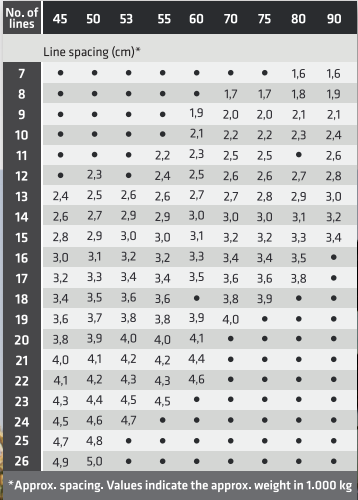

Indicative table of available configurations
X10
Go beyond the limits OF PRODUCTIVITY
Strengths
- Yield beyond measure, harvesting on a large scale to break productivity records.
- The corn header developed for high performance, providing harvesting speed and performance.
- Closed lateral transmission with oil bath as standard, reducing maintenance time.
- Gearboxes with aluminum cask and lubricated in EP 0 grease, with helical gears for best temperature dissipation.
- GTS corn headers can be equipped with a chopper (available 30-38 inches), row guidance sensors, and height sensors.
X10 Corn headers are built on a lightweight aluminium alloy chassis and are versatile, simple to install, and compatible with most North American combines. With more than fifteen years of production behind them, GTS guarantees their headers are the toughest and lightest frames on the market. Using the optional Truesight line sensor technology, X10 Corn headers are integrated with the combine's automatic steering system and GPS corrections, ensuring the harvester stays in the rows. Truesight sensors are able to detect corn stalks and identify planted rows.
Technical details

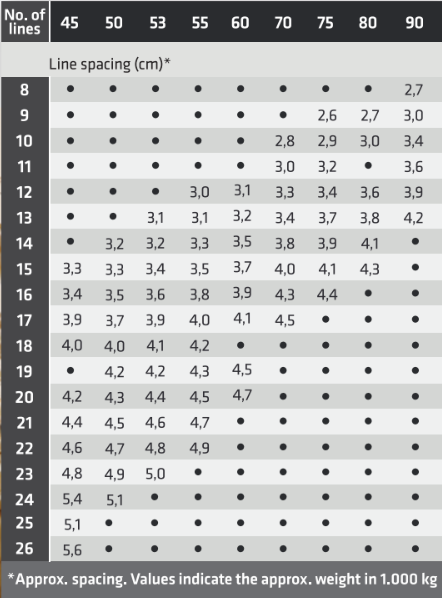

Indicative table of available configurations
Vellox
The perfect balance between TECHNOLOGY AND ROBUSTNESS
Strengths
- Sixth generation of GTS corn header: the most up-to-date.
- Exclusive cleaning system for stalk rolls. Built with 6 machined fins, ensuring perfection in its measurements, bringing the scrapers closer together, allowing harvesting in infested fields and/or joint ventures.
- Component durability. All the robustness employed by someone who specializes in corn harvesting.
- Transmission boxes with aluminum structure and grease lubrication of grade 0, dissipating heat, avoiding leaks and ensuring a longer service life.
FOR ALL TYPES OF CROP
Developed to meet the most severe harvesting conditions.
Dealers across South Africa
Find your nearest dealer
Technical details

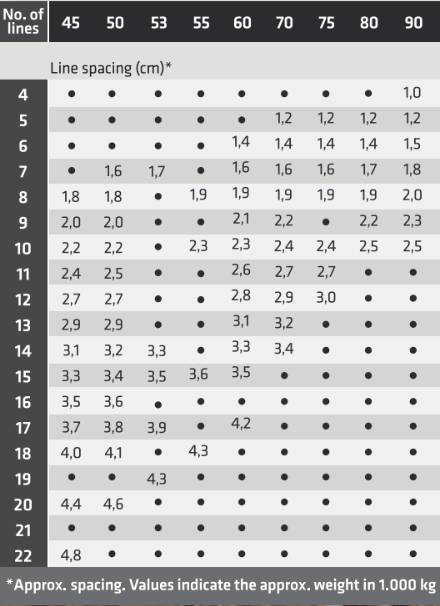

Indicative table of available configurations
Producttiva
The leading platform IN PRODUCTIVITY
Strengths
- Balanced platform with the lowest weight on the market, optimizing diesel consumption and the harvester's hydraulic system.
- Lower fuel consumption due to low weight.
- Easy adjustment of the deck plate. The platforms are equipped as standard with lateral mechanical adjustment, so with a simple movement you can change the spacing of the deck plate. Larger platforms are equipped with adjustments on both sides.
- Easy access for cleaning and maintenance.
- Safety high availability with individual line-to-line clutches. Ensuring a quick action, after all, the harvest cannot stop.
- Auger adjustment to get closer to the bottom plate. Controlling the inflow of cobs to high or low productivity crops.
YOUR HARVEST ASKS FOR BOLDNESS AND CREATIVITY.
The implement with the most units sold in the company's history. Producttiva combines the technology and efficiency of GTS implements.
Why GTS
25 reasons to buy a GTS aluminum corn head
- 1. Uniform feeding.
- 2. Variable angle window (standard option) for down corn.
- 3. Unique scraper prevents wrapping.
- 4. Toughest but lightest frames on the market.
- 5. Double flighted auger with 4 even discharge points in the feeder house.
- 6. LOWER WEIGHT = LESS COMPACTION
- 7. Short snouts handle curves much easier and haul down the road much easier without folding them up.
- 8. Tapered deck plates and unique feeding disperse more trash out the bottom of the row unit.
- 9. Goes through Particum and Foxtail like it isn't even there.
- 10. Much better harvesting capacity assures much faster harvesting speeds (up to 50%).
- 11. 3 YEAR warranty.
- 12. Tapered deck plates and smaller gathering chains for very low kernel loss.
- 13. CLEANER SAMPLE:by harvesting just the ears you get a cleaner sample.
- 14. Picks extremely clean, it could be the cleanest picking head on the market today…
- 15. Adjustable auger speed to match the capacity of your combine.
- 16. Extremely simple design, easy to work on.
- 17. Aluminum doesn't rust.
- 18. Lower weight lessens the chance of cutting tracks and getting stuck.
- 19. Coupler design allows for easy transfer from one brand of combine to another.
- 20. Several stalk roll options for stalk sizing:standard, shred select, calmer, and 360 chain rolls.
- 21. Easy maintenance, very few grease zerks.
- 22. Less stress on the combine components, such as final drives, rims, wheel studs or bolts, or the feeder house.
- 23. Simple deck plate adjustment that doesn't need freed up every year (like some).
- 24. Don't let your corn header pick your hybrids, the GTS handles the fodder so every hybrid should feed well!
- 25. Less stress!When a corn head feeds cleanly, and the down corn and weeds don't plug. LIFE IS GOOD
Videos
See it in action
